VHDL EssentialsComplete Quartus + VHDL workflow for VS Code

FPGA development integration — build, flash, simulate, and navigate your VHDL projects

⚡ Quartus Build & Flash

Compile and program your FPGA directly from VS Code with integrated output channels.

Generate .do files, launch simulations, and view live transcript output.

Ctrl+Click on entities, packages, and symbols to jump across your workspace.

Hover any top-level signal to see its assigned FPGA pin; detect missing or duplicate assignments.

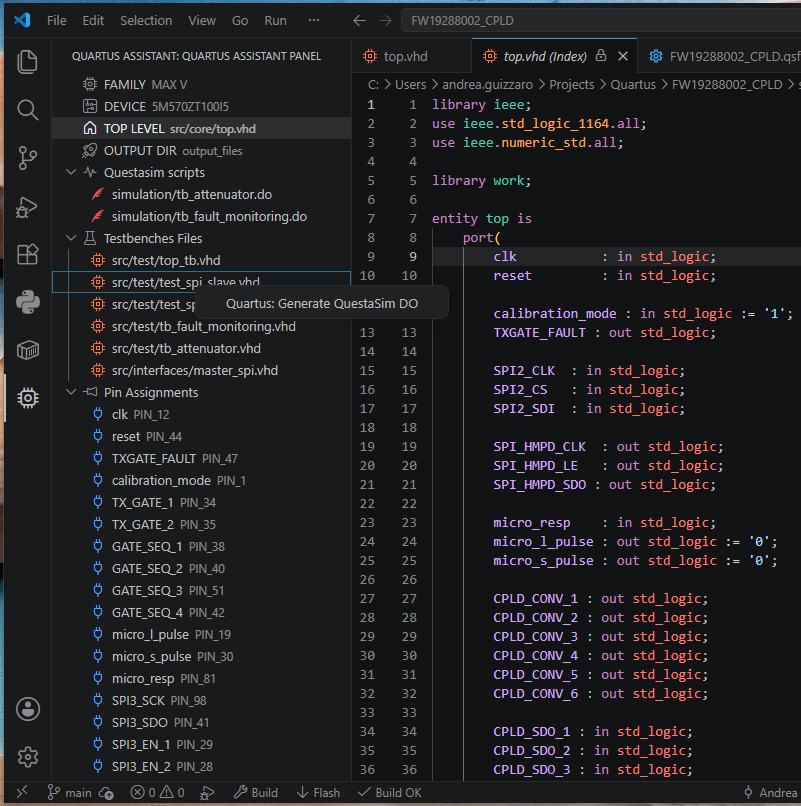

Tree view explorer for Quartus project files, pin assignments, and testbenches.

Syntax checking, unused signals, undeclared identifiers, port map validation, and more.

Entities, packages, imported symbols, and FPGA pin signals colorized intelligently.

Automatic cross-file indexing of entities, packages, and symbols.

Quick fixes for diagnostics — Alt+Enter to auto-fix port maps, duplicates, missing semicolons, and more.

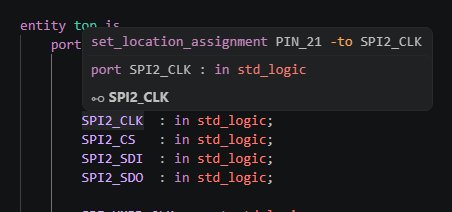

FPGA Pin Diagnostics

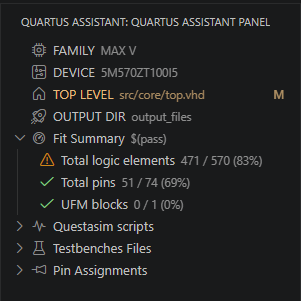

Fit Resource Summary

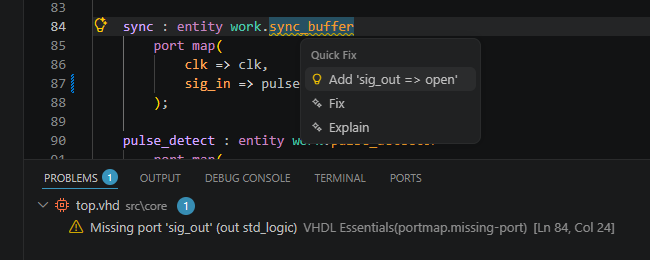

Quick-Fix Code Actions

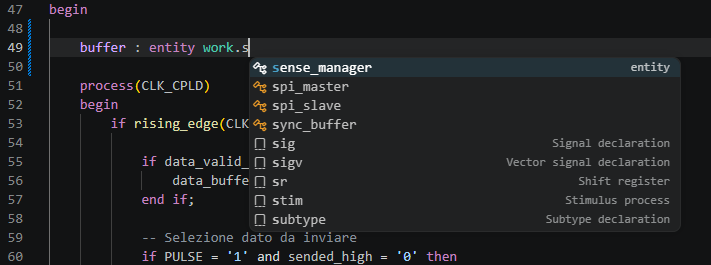

VHDL Entity Navigation
